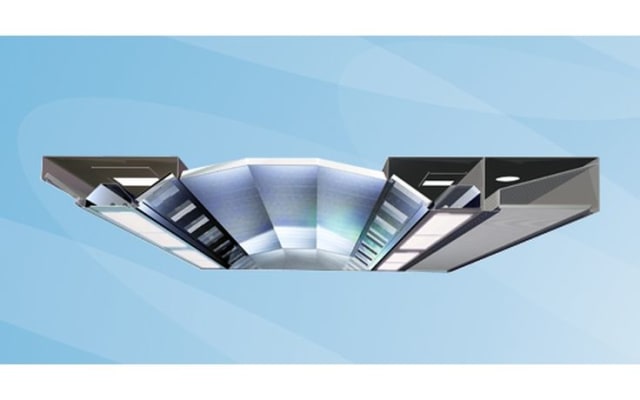

Halton KCJ Capture Jet Ventilated Ceiling

Halton ventilated ceilings are designed for use in open commercial kitchens, production kitchens and show kitchens. The combination of Capture Jet™ and the provision for make-up air through the ceiling’s face at low velocity helps capture and contain the heat load with lower exhaust airflow. Halton KCJ ventilated ceilings can be installed from 2300-3000 above floor level to provide a healthy open kitchen environment.

  • Kitchen ventilated ceiling shall comply with AS1668.2 2012 (clause 3.6)
  • Constructed from 1.2 mm AISI 304 Satin finish with fully welded exhaust plenum
  • The ventilated ceiling shall be supplied complete with Capture Jet™ technology with high efficiency UL classified multi-cyclone grease filters (KSA) fully welded exhaust plenums with pressure measurement points as well as exhaust and supply air adjustment dampers and flush light fittings to provide minimum 500 lux at the cooking surface
  • The size shall be as indicated in the drawings
  • The ceiling will be designed to save energy and capture efficiency will be calculated using convective heat calculations methods\n
    Specification
    Brand
    Halton
    Progressive Filtration
    No
    UV Filtration
    No
    Capture Jet Technology
    Cold Mist & Hot Wash
    No
    Exhaust System Classification
    Ventilated Ceiling
    Low Wall System
    Yes
    Make Up Air
    No
